PRIMES measuring devices can be combined modularly depending on requirements. For example, focus and power measurements can be carried out at the same time.

For example, by combining the FocusMonitor and PowerMonitor. The BeamControlSystem represents an integrated solution designed for harsh industrial conditions for the automated measurement of the most critical laser beam parameters.



PRIMES devices for focus- and power measurement

 WavelengthSpecial characteristics

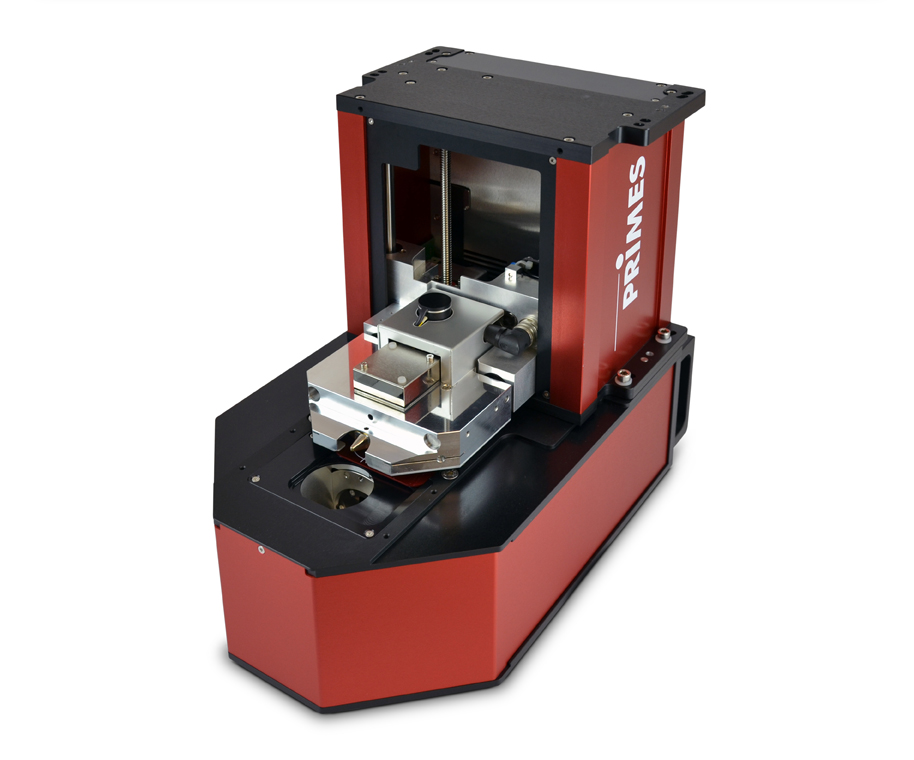

FM-PM ensemble

CO2
NIR
  • Robust construction
  • Easy of operation directly via LaserDiagnosticsSoftware
  • Suited for use in servicing

BeamControlSystem

CO2
NIR
  • Dust-proof housing
  • Fieldbus interface
  • Continuous power measurement possible

HighPower-MSM-Industry

NIR
  • Dust-proof housing
  • Fieldbus interface
  • Protective window cartridge
  • Internal power reference by means of EC-PM

FocusParameterMonitor

NIR
  • Dust-proof housing
  • Short measuring period of ca. 300 ms
  • Power and beam profile on the workpiece plane

HighPower-MSM-HighBrilliance with PowerLossMonitor option

NIR
  • Maximum power densities up to GW/cm²
  • Small spot size up to 10 µm at 10 kW laser beam power
  • Expandable with fibre measurement options
  • Power measurement by means of PowerLossMonitor (PLM)
